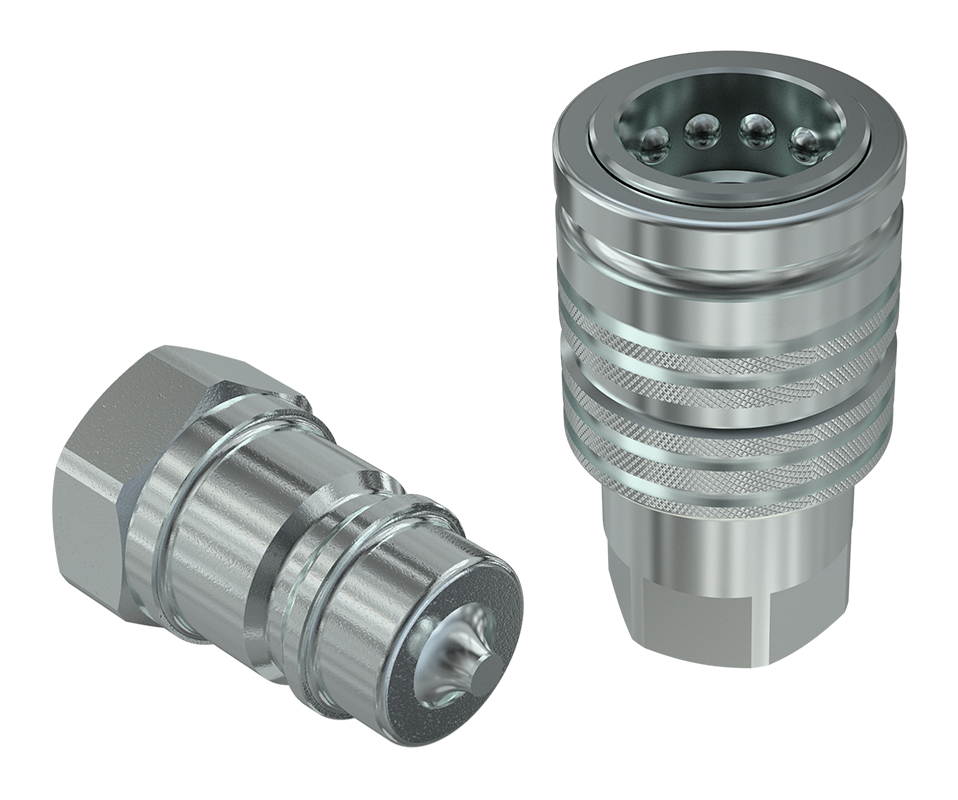

Push-pull couplings, designed for panel mounting installation. Thanks to a microvalve it's possible to easily spill some oil when necessary in order to relieve the residual pressure into the female half. BSP and NPT female thread available. Breakaway function. ISO 7241 part A interchange.
Size, mm | PartNumber | Thread | HEX1 | D1 | L1 |
12,5 | 4PV 12 GAS F | BSPP 1/2 FEMALE | 27 | 38 | 66 |
Working Pressure | Flow Rate | Temperature | Seals | Weight |
25 MPa | 75 (l/min) at 0,2 MPa | -25 °C to 125 °C | NBR | 272.1 g |
